Eye Movement-Based Interaction Techniques and the Elements of Next-Generation, Non-WIMP User Interfaces

Bio:
Robert Jacob is an Associate Professor of Computer Science at Tufts University, where his research interests are new interaction media and techniques and user interface software. He was also a visiting professor at the MIT Media Laboratory, in the Tangible Media Group, and continues collaboration with that group. Before coming to Tufts, he was in the Human-Computer Interaction Lab at the Naval Research Laboratory. He received his Ph.D. from Johns Hopkins University, and he is currently Vice-Chair of ACM SIGCHI and a member of the editorial board of ACM Transactions on Computer-Human Interaction and was Papers Co-Chair of the CHI 2001 conference.

Overview

• Existing Interaction Styles
• Characteristics of Emerging Interaction Style
• Example: Eye Movement-Based Interaction
• Issues
• Approach to Using Eye Movements
• Previous Work
• Methods for Measuring Eye Movements
• Optical/Video Method
• Use CR-plus-pupil Method
• The Eye
• Types of Eye Movements Expected
• Eye Tracker in Use
• Fixation Recognition
• User Interface Management System
• Interaction Techniques
• Eye as a Computer Input Device
• Object Selection
• Continuous Attribute Display
• Moving an Object
• Menu Commands
• Eye-Controlled Scrolling Text
• Listener Window
• Object Selection Experiment
• Results
• Example: X-ray Vision
• Natural...Plus Artificial Extensions
• Thanks

Existing Interaction Styles

• Command Language
• Question and Answer
• Form-based
• Menu
• Natural Language
• Direct Manipulation, GUI
• Virtual Reality
• ...?

Characteristics of Emerging Interaction Style

• Continuous + Discrete
• Parallel, Highly-Interactive
• Natural Interaction
• ...Plus Artificial Extensions
• Lightweight, Non-command
• Smaller, Bigger, Interchangeable
• Discourse Properties

Example: Eye Movement-Based Interaction

• Highly-interactive, Non-WIMP, Non-command, Lightweight
  • Continuous, but recognition algorithm quantizes
  • Parallel, but implemented on coroutine UIMS
  • Non-command, lightweight, not issue intentional commands
• Benefits
  • Extremely rapid
  • Natural, little conscious effort
  • Implicitly indicate focus of attention
  • “What You Look At is What You Get”

Issues

• Midas touch
  • Eyes continually dart from point to point, not like relatively slow and deliberate operation of manual input devices
  • People not accustomed to operating devices simply by moving their eyes; if poorly done, could be very annoying
• Need to extract useful dialogue information from noisy eye data
• Need to design and study new interaction techniques

Approach to Using Eye Movements

• Philosophy
  • Use natural eye movements as additional user input
  • vs. trained movements as explicit commands
• Technical approach
  • Process noisy, jittery eye tracker data stream to filter, recognize fixations, and turn into discrete dialogue tokens that represent user's higher-level intentions
  • Then, develop generic interaction techniques based on the tokens

Previous Work

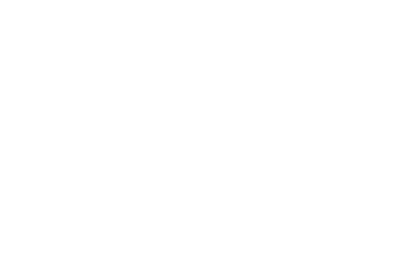

• A taxonomy of approaches to eye movement-based interaction


Methods for Measuring Eye Movements

• Electronic
  • Skin electrodes around eye
• Mechanical
  • Non-slipping contact lens
• Optical/Video - Single Point
  • Track some visible feature on eyeball; head stationary
• Optical/Video - Two Point
  • Can distinguish between head and eye movements

Optical/Video Method

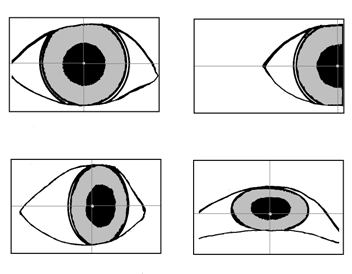

• Views of pupil, with corneal reflection

• Hardware components



Use CR-plus-pupil Method

• Track corneal reflection and outline of pupil, compute visual line of gaze from relationship of two tracked points
• Infrared illumination
• Image from pupil camera



The Eye

• Retina not uniform
  • Sharp vision in fovea, approx. 1 degree
  • Blurred vision elsewhere
• Must move eye to see object sharply
• Eye position thus indicates focus of attention

Types of Eye Movements Expected

• Saccade
  • Rapid, ballistic, vision suppressed
  • Interspersed with fixations
• Fixation
  • Steady, but some jitter
• Other movements
• Eyes always moving; stabilized image disappears

Eye Tracker in Use

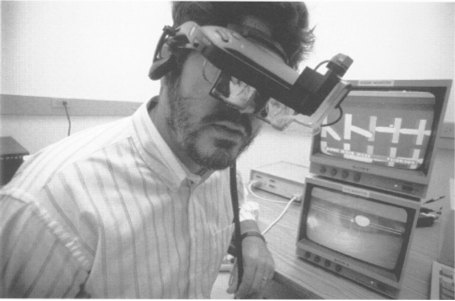

• Integrated with head-mounted display



Fixation Recognition

• Need to filter jitter, small saccades, eye tracker artifacts
• Moving average slows response speed; use a priori definition of fixation, then search incoming data for it

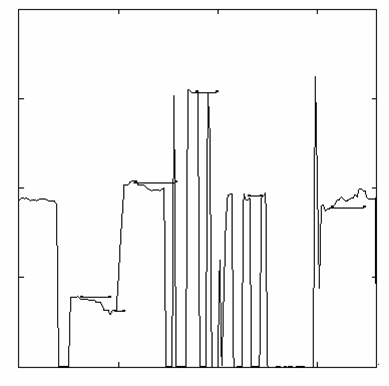

• Plot = one coordinate of eye position vs. time (3 secs.)
• Horizontal lines with o's represent fixations recognized by algorithm, when and where they would be reported

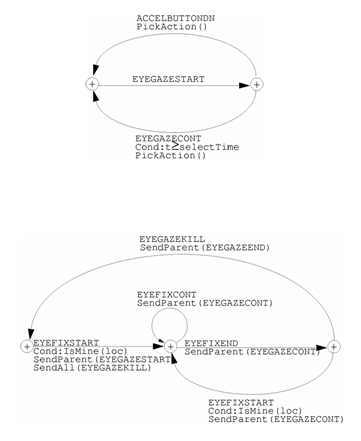

User Interface Management System

• Turn output of recognition algorithm into stream of tokens
  • EYEFIXSTART, EYEFIXCONT, EYEFIXEND, EYETRACK, EYELOST, EYEGOT
• Multiplex eye tokens into same stream as mouse, keyboard and send to coroutine-based UIMS
• Specify desired interface to UIMS as collection of concurrently executing objects; each has own syntax, which can accept eye, mouse, keyboard tokens



Interaction Techniques

• Eye tracker inappropriate as a straightforward substitute for a mouse
• Devise interaction techniques that are fast and use eye input in a natural and unobtrusive way
• Where possible, use natural eye movements as an implicit input
• Address “Midas Touch” problem



Eye as a Computer Input Device

• Faster than manual devices
• No training or coordination
• Implicitly indicates focus of attention, not just a pointing device
• Less conscious/precise control

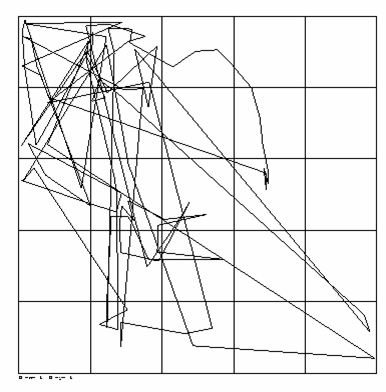

• Eye moves constantly, even when user thinks he/she is staring at a single object
• Eye motion is necessary for perception of stationary objects
• Eye tracker is always "on"
• No analogue of mouse buttons
• Less accurate/reliable than mouse

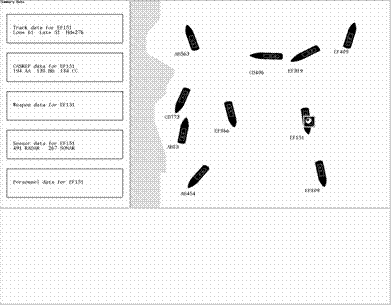

Object Selection

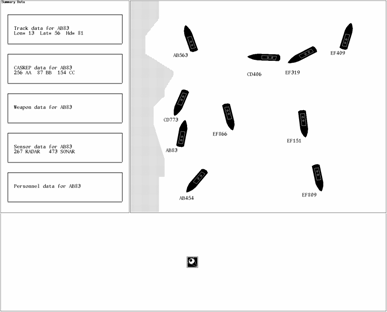

• Select object from among several on screen
• After user is looking at the desired object, press button to indicate choice
• Alternative = dwell time: if look at object for sufficiently long time, it is selected without further commands
  • Poor alternative = blink.
• Dwell time method is convenient, but could mitigate some of speed advantage



• Found: Prefer dwell time method with very short time for operations where wrong choice immediately followed by correct choice is tolerable
• Long dwell time not useful in any cases, because unnatural
• Built on top of all preprocessing stages-calibration, filtering, fixation recognition
• Found: 150-250 ms. dwell time feels instantaneous, but provides enough time to accumulate data for accurate fixation recognition



Continuous Attribute Display

• Continuous display of attributes of selected object, instead of user requesting them explicitly
• Whenever user looks at attribute window, will see attributes for the last object looked at in main window
• If user does not look at attribute window, need not be aware that eye movements in the main window constitute commands
• Double-buffered refresh of attribute window, hardly visible unless user were looking at that window
  • But of course user isn't

Moving an Object

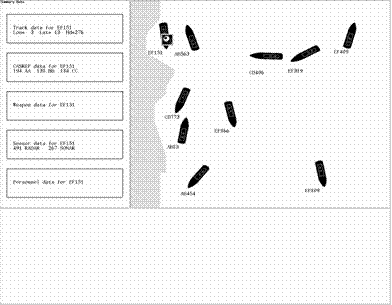

• Two methods, both use eye position to select which object to be moved
  • Hold button down, “drag” object by moving eyes, release button to stop dragging
  • Eyes select object, but moving is done by holding button, dragging with mouse, then releasing button
• Found: Surprisingly, first works better
• Use filtered “fixation” tokens, not raw eye position, for dragging



Menu Commands

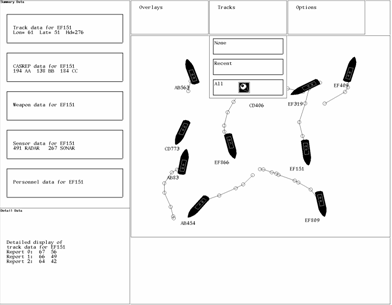

• Eye pull-down type menu
• Use dwell time to pop menu, then to highlight choices
  • If look still longer at a choice, it is executed; else if look away, menu is removed
  • Alternative: button to execute highlighted menu choice without waiting for second, longer dwell time
• Found: Better with button than long dwell time
• Longer than people normally fixate on one spot, hence requires “unnatural” eye movement



Eye-Controlled Scrolling Text

• Indicator appears above or below text, indicating that there is additional material not shown
• If user looks at indicator, text itself starts to scroll
• But never scrolls while user is looking at text
• User can read down to end of window, then look slightly lower, at arrow, in order to retrieve next lines
• Arrow visible above and/or below text display indicates additional scrollable material



Listener Window

• Window systems use explicit mouse command to designate active window (the one that receives keyboard inputs)
• Instead, use eye position: The active window is the one the user is looking at
• Add delays, so can look briefly at another window without changing active window designation
• Implemented on regular Sun window system (not ship display testbed)

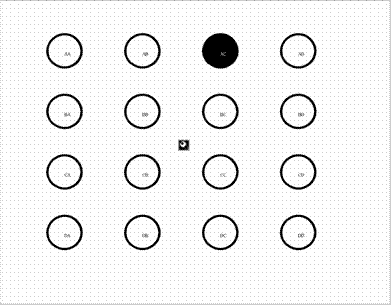

Object Selection Experiment

• Compare dwell time object selection interaction technique to conventional selection by mouse pick
• Use simple abstract display of array of circle targets, instead of ships
• Subject must find and select one target with eye (dwell time method) or mouse
• Circle task: Highlighted item
• Letter task: Spoken name



Results

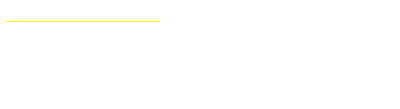

• Eye gaze selection significantly and substantially faster than mouse selection in both tasks
• Fitts slope almost flat (1.7 eye vs 117.7 mouse)



Example: X-ray Vision

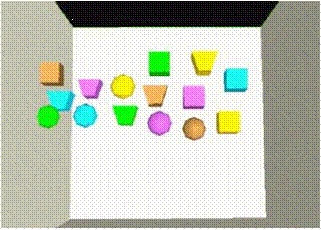

1. Entire virtual room
2. Portion of virtual room
   • No object currently selected

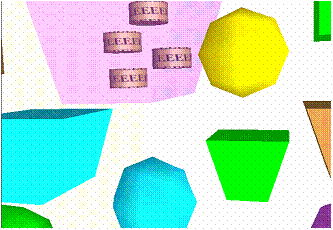

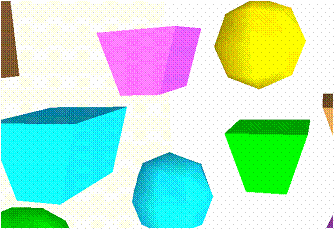

3. Stare at purple object near top
   • Internal details become visible



Natural...Plus Artificial Extensions

• Exact duplicate of natural world?
• Natural plus extensions
  • Desktop GUI plus “find” command
  • Interact normally plus can turn on X-ray vision
  • Walk and move normally plus can fly by leaning
  • Grasp and move tangible architectural model plus see effect on wind
• Propose: Design approach
  • Natural metaphor as far as possible
  • Then add extensions on top of it

With thanks to:

• My students at Tufts
• Tangible Media Group at MIT
• NSF, NEH, ONR, NRL (Tufts)
• TTT and DL Consortia (MIT Media Lab)
